BMW N55B30/S55B30 Rebuild Kit with Carrillo Conrods and CP Forged Pistons

The kit will take 1-2 weeks to ship
USD$3,915.45
SKU
REB-BMW55-CAR-CP
+ -

Add to Wish List Share

Copy Link

For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

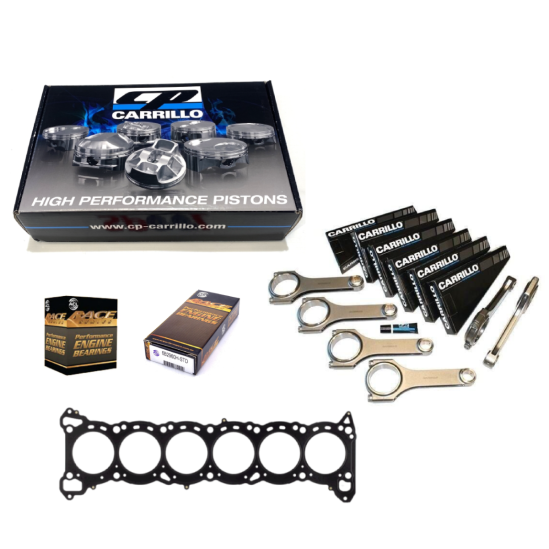

This Rebuild Kit includes the following quality parts:

  • CP Carrillo Conrods, Pro H-Beam or Pro H-Beams with CAR Bolts,
  • CP Forged Pistons (Rings, Pins and Locks Included)
  • Cometic MLS Head Gasket .059" (1.5mm)
  • ACL Race Series Main Bearings - STD, 0.025 or 0.25mm
  • ACL Race Series Big End Bearings - STD, 0.025 or 0.25mm

Pistons are available in:

  • Compression Ratios: 11:1 (N55), 10.2:1 (S55)/li>
  • Bore Sizes: STD and 84.5mm a
  • Pistons come with rings, gudgeon pins and pin locks

Carrillo Connecting Rods Feature:

    CP-Carrillo uses a proprietary steel to manufacture its connecting rods, named Carrilloy. It is a chrome, nickel, moly, vanadium alloy which meets all VAR (vacuum arc re-melt ASTM standards). Carrilloy is simply a modification of an existing SAE specification. We just tighten up the acceptable attributes of the heat as it is manufactured. The heat is validated, both by the supplier and an independent metallurgist whom confirm the desired physical and chemical properties of steel.

CP Pistons standard features include:

  • 5310 gudgeon pins (9310 thicker wall thickness pins are available as an upgrade)
  • Deep valve reliefs accommodate high lift camshafts
  • Larger valve reliefs for +1mm valve sizes
  • Custom skirt cam and barrel design
  • Accumulator grooves
  • High strength aluminium forgings
  • High performance rings
  • Fully CNC machined and balanced to +/- 1 gram
  • Wrist pins included
  • Double pin oilers force fed from oil ring groove
  • Pick lock grooves for easy lock removal
  • Pin fitting included

Note: We recommend Joe Gibbs Break in Oil for all new engines.

More Information
Product Name BMW N55B30/S55B30 Rebuild Kit with Carrillo Conrods and CP Forged Pistons
Brands Spool
Engine N55B30 - S55B30
Make BMW
