Street performance cams for Nissan Silvia Turbo SR20DET improved low to mid-range power and good throttle response. Ideal for 54mm-60mm turbos.
Requires valve spring upgrade.
- Kelford Cams recommend KVS93 or KVS93-BT valve spring upgrade.

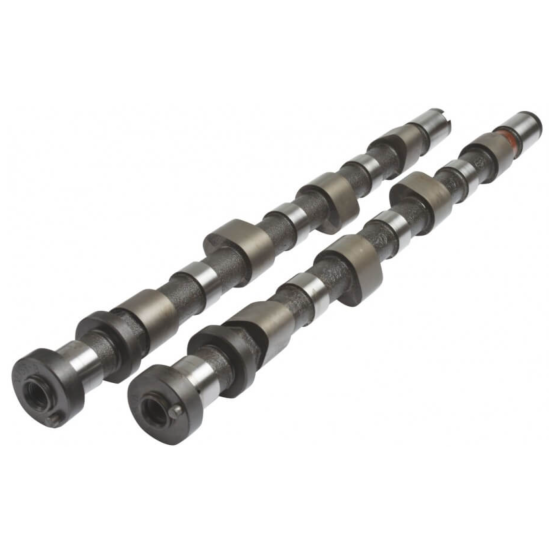

Kelford Nissan SR20DET S13 Turbo, 260 degree/266 degree / 11.80mm/11.00mm (188-A)
CAMSHAFT PROFILE:
260 degree/266 degree | 11.80mm/11.00mm
AUD$768.18
In stock
SKU
188-A
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
Engine Make: NISSAN
Engine Model: SR20DET S13 TURBO
Part Number: 188-A Camshaft
Valve clearance
Intake:
Set: at theExhaust:
Set: at theCam Lift
Intake: 7.61mm
Exhaust: 7.10mm
Rocker Ratio:
Intake: 1.55
Exhaust: 1.55
Nett Valve Lift:
Intake:11.80mm
Exhaust: 11.00mm
Advertised Duration @ 0.10mm
Intake: 260
Exhaust: 266
Duration @1.00mm VALVE LIFT
Intake: 218
Exhaust: 222
Timing @1.00mm VALVE LIFT
IVO:1 BTDC
EVO: 43 BBDC
IVC: 37 ABDC
EVC: 1 BTDC
Suggested Centre Lines:
Intake: 108
Exhaust: 112
VALVE Lift @ TDC
Intake: 1.12mm
Exhaust: 0.92
| Product Name | Kelford Nissan SR20DET S13 Turbo, 260 degree/266 degree / 11.80mm/11.00mm (188-A) |
|---|---|
| Brands | Kelford |
| Engine | SR20 |
| Make | Nissan |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
Why choose matched valve springs for performance cams?
Spring pressure must match the cam profile and rpm limit. Too little causes valve float; too much causes wear.
Do I need adjustable cam gears?
They allow fine-tuning of cam timing, especially useful after head machining or when running non-standard cams.
What are the recommended valve clearances for the Kelford 188-A camshaft?
For the Kelford 188-A camshaft, set the valve clearances to the manufacturer's specifications. Typically, intake and exhaust clearances should be set according to your specific engine setup, but a common starting point is around 0.10mm for both.
What type of valve springs should I use with the Kelford 188-A camshaft?
It is recommended to upgrade to Kelford's KVS93 or KVS93-BT valve springs when using the 188-A camshaft. This ensures proper valve control at higher RPMs and prevents valve float.
What is the expected power range for the SR20DET with the Kelford 188-A camshaft?
The Kelford 188-A camshaft is designed to improve low to mid-range power and throttle response, particularly when paired with 54mm-60mm turbos. However, actual power output will depend on the entire engine setup, including tuning, fuel quality, and boost levels.
Do I need to adjust the timing when installing the Kelford 188-A camshaft?
Yes, when installing the Kelford 188-A camshaft, you should consider adjusting the cam timing to the suggested centre lines of 108 degrees for intake and 112 degrees for exhaust to optimise performance.
Can I use the Kelford 188-A camshaft with stock components?
While the Kelford 188-A camshaft can be installed with stock components, it is advisable to upgrade the valve springs and ensure your engine is properly tuned to handle the increased performance characteristics.
