282 degree-288 degree/300 degree | 11.10mm-11.10mm/11.10mm
292 degree/288 degree split lobe intake, 300 degree exhaust. High lift drag racing cams. To suit high boost alcohol drag engines running 80mm+ turbo. Ideal for well built engines with +1mm valves and ported head. Reduced base circle diameter.
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

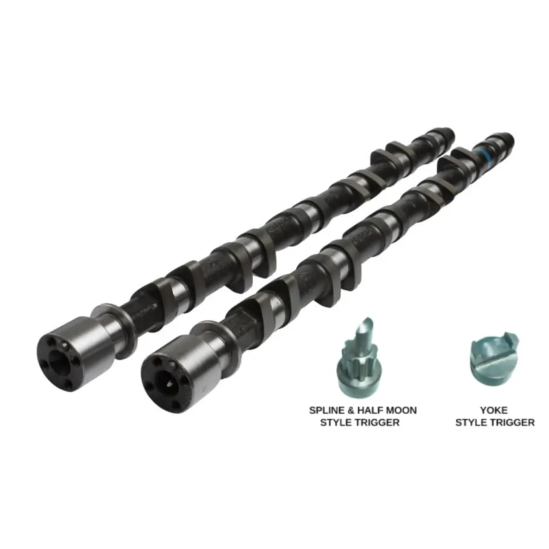

| Product Name | Kelford Nissan RB26-DETT R32 & R33 (Mech) Kelford (292/300) 182-SG |
|---|---|
| Brands | Kelford |
| Engine | RB26, RB26DET |
| Make | Nissan |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
Spring pressure must match the cam profile and rpm limit. Too little causes valve float; too much causes wear.
They allow fine-tuning of cam timing, especially useful after head machining or when running non-standard cams.
For the Kelford 182-SG camshaft, the recommended valve clearances are 0.25mm for the intake and 0.30mm for the exhaust. These should be set cold at the cam.
To effectively use the Kelford 182-SG camshaft, you will need to machine the cylinder head for clearance of the high lift cam lobes. It's also advisable to use +1mm valves and ensure the head is ported for optimal performance.
The Kelford 182-SG camshaft is designed for high boost alcohol drag racing engines, particularly those running 80mm or larger turbochargers. It is best suited for well-built RB26DETT engines.
Kelford recommends using the KVS1855-BT valve springs with the 182-SG camshaft to ensure proper valve control at high RPMs.
The timing specifications for the Kelford 182-SG camshaft at 1.00mm valve lift are IVO at 16 BTDC, EVO at 70 BBDC, IVC at 58 ABDC, and EVC at 10 ATDC.
