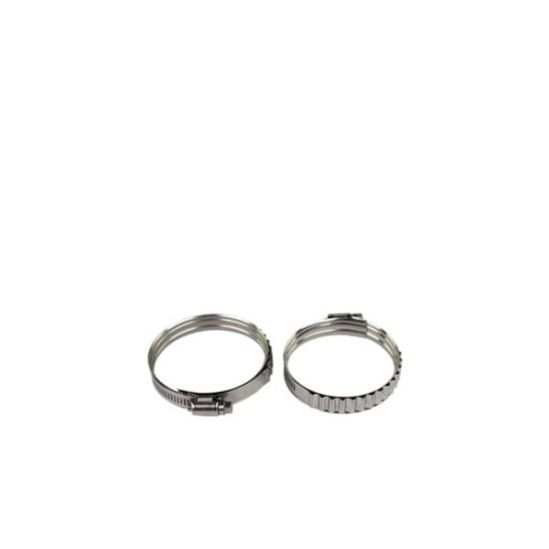

Turbosmart TS Constant Tension Clamps 1.970-2.875"
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
No more cut or bruised silicon hose thanks to this unique design that allows the hose to expand and contract through heat cycles while maintaining perfect tension.
Click HERE for the full range of Turbosmart Silicon and Clamps.
Includes 2 Clamps
Available In
28-38mm (1.125-1.500”) -TS-HCT-M033
35-48mm (1.375-1.875”) –TS-HCT-M042
41-60mm (1.625-2.375”) –TS-HCT-M050
50-73mm (1.970-2.875”) –TS-HCT-M062
64-86mm (2.500-3.375”) –TS-HCT-M075
70-92mm (2.750-3.625”) –TS-HCT-M081
95-117.5mm (3.750-4.625”) –TS-HCT-M100
Features
Dual Spring Action through convoluted Spring Action Band
Dual Bead Inner shell for concentrated sealing force
Flanged Edges for protection of soft hose compounds
Reduced Stress & Distress to the hose, increasing service life
Recommended Installation Tips
Tool(s) Required: Flat Head Screwdriver or 5/16” Socket
Installation Torque: 5.6Nm / 50in.lbs
| Product Name | Turbosmart TS Constant Tension Clamps 1.970-2.875" |
|---|---|
| Brands | Turbosmart |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
How do I choose the right turbo size?
Turbo selection depends on engine size, boost target, rpm range and desired response. A smaller turbo spools faster; a larger turbo supports more top-end power.
Why is wastegate placement important?
Poor placement or sizing can cause boost creep or unstable boost control.
What is the purpose of the Turbosmart TS Constant Tension Clamps?
The Turbosmart TS Constant Tension Clamps are designed to maintain consistent force and load on hoses, compensating for thermal cycling and deformation. This ensures reliable sealing and prevents issues such as hose cuts or bruising due to expansion and contraction during engine operation.
What sizes do the TS-HCT-M062 clamps accommodate?
The TS-HCT-M062 clamps are suitable for hoses with a diameter range of 50mm to 73mm (1.970-2.875 inches). This makes them ideal for various applications in forced induction systems where larger hoses are used.
What tools are required for installing the TS-HCT-M062 clamps?
To install the TS-HCT-M062 clamps, you will need a flat head screwdriver or a 5/16” socket. Ensure that you apply the recommended installation torque of 5.6Nm (50in.lbs) for optimal performance.
How do the features of the TS-HCT-M062 clamps benefit hose longevity?
The TS-HCT-M062 clamps feature a dual spring action band and flanged edges that reduce stress on the hose material, increasing its service life. The dual bead inner shell provides concentrated sealing force, enhancing the reliability of the connection.
Can the TS-HCT-M062 clamps be used with all types of hoses?
While the TS-HCT-M062 clamps are designed for use with silicone and rubber hoses, it's essential to ensure compatibility with the specific hose type and application. Always check the hose specifications to confirm suitability.
