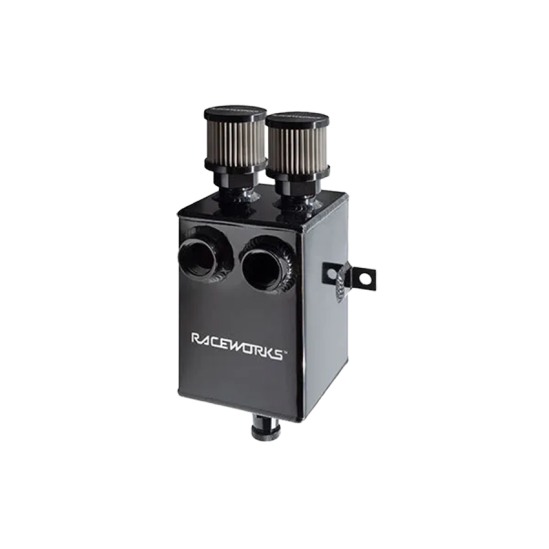

Raceworks 2L Baffled Oil Catch Can with Twin Breathers - ALY-074BK
The Raceworks ALY-074BK is a high-capacity oil catch can and breather tank designed to help separate oil mist from crankcase ventilation gases before they reach the intake system. Its internally baffled design supports effective oil separation while the twin filtered breathers provide unrestricted ventilation for performance street, track and competition applications.
Robot-welded from 5052 aluminium and finished in black, this universal catch can combines a durable construction with a clean engine-bay appearance. Two AN-12 ORB inlet ports provide high-flow plumbing options, while the AN-10 drain outlet includes a tapered banjo-style tap for controlled, low-mess draining. The drain fitting can also be replaced with a suitable AN or barb adapter where a permanent oil-return arrangement is required.
Features
- 2.0 litre total tank capacity
- 1.3 litre usable volume
- Internally baffled for improved oil separation
- Robot-welded 5052 aluminium construction
- Black finish
- Twin AN-12 filtered breathers
- Two AN-12 ORB inlet ports
- AN-10 drain outlet with tap
- Integrated mounting brackets
- Universal fitment
Specifications
| Part number | ALY-074BK |
|---|---|
| Tank capacity | 2.0 litres |
| Usable volume | 1.3 litres |
| Inlet ports | 2 x AN-12 ORB |
| Drain | AN-10 with tap |
| Breathers | Twin AN-12 filtered breathers |
| Construction | 5052 aluminium |
| Overall height | 277 mm including breathers and drain tap |
| Height excluding breathers and drain tap | 203 mm |
| Tank body height | 160 mm |
| Width | 110 mm |
| Depth | 110 mm |
| Fitment | Universal |
What's Included
- Raceworks 2L baffled catch can
- Two AN-12 filtered breathers
- AN-10 drain tap
This is a universal component and requires custom mounting and plumbing. Confirm available space, hose sizes, engine ventilation requirements and applicable motorsport or road-use regulations before installation.
| Product Name | Raceworks 2L Baffled Oil Catch Can with Twin Breathers and Drain Tap - Black |
|---|---|
| Brands | Raceworks |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
If you are outside of Australia, you are responsible for any duty or taxes charged by your government."
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
What is the usable capacity of the Raceworks ALY-074BK catch can?
The tank has a 2.0 litre total capacity and a stated usable volume of 1.3 litres.
Is the ALY-074BK internally baffled?
Yes. The tank is baffled to help separate oil mist from crankcase ventilation gases before they enter the intake system.
What ports and breathers are supplied?
It uses two AN-12 ORB inlet ports and includes twin AN-12 filtered breathers.
How is the catch can drained?
An AN-10 drain outlet with a tapered banjo-style tap is included. The fitting may be replaced with a suitable AN or barb adapter for a permanent oil-return arrangement.
Is this catch can vehicle-specific?
No. ALY-074BK is universal and requires custom mounting and plumbing. Check clearance, ventilation requirements, hose sizes and local regulations before ordering.
-
