Raceworks 1L Baffled Oil Catch Can with Breather and Drain Tap - Black
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
Raceworks 1L Baffled Oil Catch Can with Breather and Drain Tap - ALY-129BK

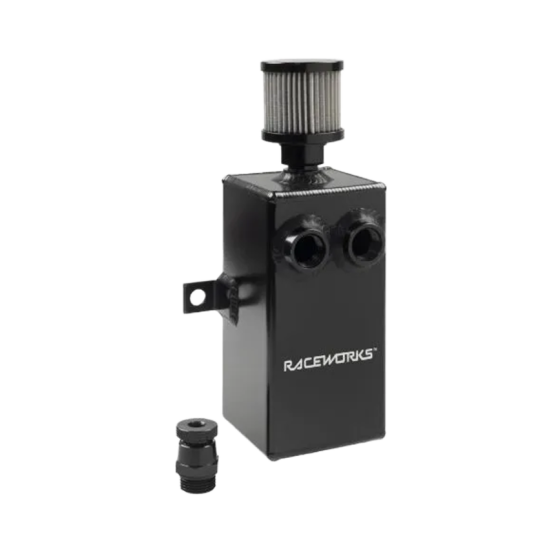

The Raceworks ALY-129BK is a compact oil catch can and breather tank designed to help separate oil mist from crankcase ventilation gases before they reach the intake system. Its internally baffled construction supports effective oil separation while the filtered breather allows the crankcase ventilation system to flow freely.
Robot-welded from 5052 aluminium and finished in black, this universal catch can is suited to performance street, track and custom engine-bay installations. Two AN-8 ORB inlet ports provide flexible plumbing options, while the AN-10 drain outlet includes a tapered banjo-style tap for controlled, low-mess draining. The drain fitting may also be replaced with a suitable AN or barb adapter where a permanent oil-return arrangement is required.
Features
- 1.0 litre total tank capacity
- 0.7 litre usable volume
- Internally baffled for improved oil separation
- Robot-welded 5052 aluminium construction
- Black finish
- AN-12 filtered breather
- Two AN-8 ORB inlet ports
- AN-10 drain outlet with tap
- Integrated mounting bracket
- Universal fitment
Specifications
| Part number | ALY-129BK |
|---|---|
| Tank capacity | 1.0 litre |
| Usable volume | 0.7 litre |
| Inlet ports | 2 x AN-8 ORB |
| Drain | AN-10 with tap |
| Breather | AN-12 filtered breather |
| Construction | 5052 aluminium |
| Overall height | 279 mm including breather and drain tap |
| Height excluding breather and drain tap | 200 mm |
| Tank body height | 160 mm |
| Width | 80 mm |
| Depth | 80 mm |
| Fitment | Universal |
What's Included
- Raceworks 1L baffled catch can
- AN-12 filtered breather
- AN-10 drain tap
For an AN-10 breather-line application, Raceworks recommends the RWF-920-10-08SS thin-wall stainless steel fitting. This is a universal component and requires custom mounting and plumbing. Confirm clearance, hose sizes, engine ventilation requirements and applicable motorsport or road-use regulations before installation.
| Product Name | Raceworks 1L Baffled Oil Catch Can with Breather and Drain Tap - Black |
|---|---|
| Brands | Raceworks |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
If you are outside of Australia, you are responsible for any duty or taxes charged by your government."
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
What is the usable capacity of the Raceworks ALY-129BK catch can?
The tank has a 1.0 litre total capacity and a stated usable volume of 0.7 litre.
Is ALY-129BK internally baffled?
Yes. The tank is baffled to help separate oil mist from crankcase ventilation gases.
What inlet ports and breather does it use?
It has two AN-8 ORB inlet ports and includes an AN-12 filtered breather.
How is the catch can drained?
An AN-10 drain outlet with a tapered banjo-style tap is included. It may be replaced with a suitable AN or barb adapter for a permanent oil-return arrangement.
Can it be used with an AN-10 breather line?
Yes, with an appropriate adapter. Raceworks recommends its RWF-920-10-08SS thin-wall stainless steel fitting for AN-10 breather-line applications.
-
-
-
