Performance Springs Toyota 4E-FTE Single Valve Springs – PS 71654E
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

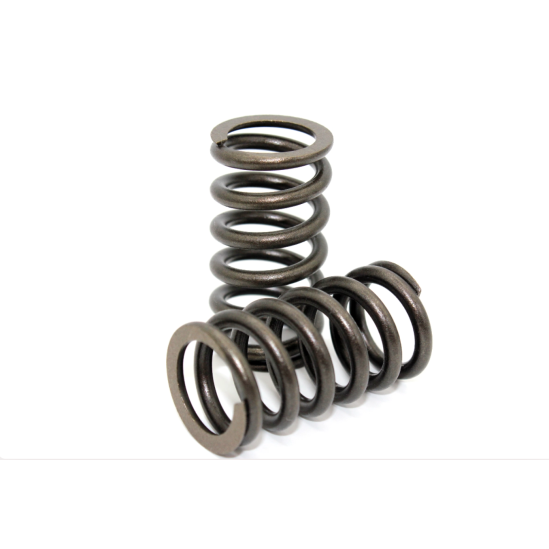

Performance Springs PS 71654E Single Valve Springs are designed specifically for the Toyota 4E-FTE engine.
These performance valve springs are designed to provide improved valve train control for performance and modified 4E-FTE applications while retaining the use of standard/OEM valve spring retainers.
The PS 71654E has a maximum specified valve lift of 0.400", installs at 31.4 mm installed height and provides 82 lb of seated pressure.
At 7.5 mm lift, the spring provides 140 lb of open pressure. The spring has a 23.6 mm outside diameter, 16.9 mm inside diameter and 21 mm coil bind.
A complete Toyota 4E-FTE engine requires 16 × PS 71654E valve springs.
Spring Specifications
- Spring Type: Single Valve Spring
- Maximum Valve Lift: 0.400"
- Retainers: Standard / OEM
- Installed Height: 31.4 mm
- Seated Pressure: 82 lb
- Open Pressure: 140 lb @ 7.5 mm
- Outside Diameter: 23.6 mm
- Inside Diameter: 16.9 mm
- Coil Bind: 21 mm
- Quantity Required: 16 springs
Application
- Toyota 4E-FTE
- Toyota 4E-FTE turbo engines
- Modified Toyota 4E-FTE engines
- Performance 4E-FTE valve train applications
What's Included
16 × Performance Springs PS 71654E Single Valve Springs
Installation Information
Always verify installed height, valve lift, spring pressure, coil bind clearance, retainer compatibility and complete valve train geometry against the specific engine and cylinder-head configuration before installation.
Performance Valve Springs states that the installer is responsible for checking and rechecking all dimensions, pressures, applications and specifications before, during and after installation. The supplier also specifies an approximate ±8% tolerance on valve spring pressure specifications.
If there is any concern regarding the specifications or application, contact Performance Valve Springs before ordering.
| Product Name | Performance Springs Toyota 4E-FTE Single Valve Springs – PS 71654E |
|---|---|
| Brands | Performance Springs |
| Engine | 4EFTE |
| Make | Toyota |
