Performance Springs Toyota 4E-FTE 16V Single Valve Spring & Titanium Retainer Kit – PST 7165890K
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

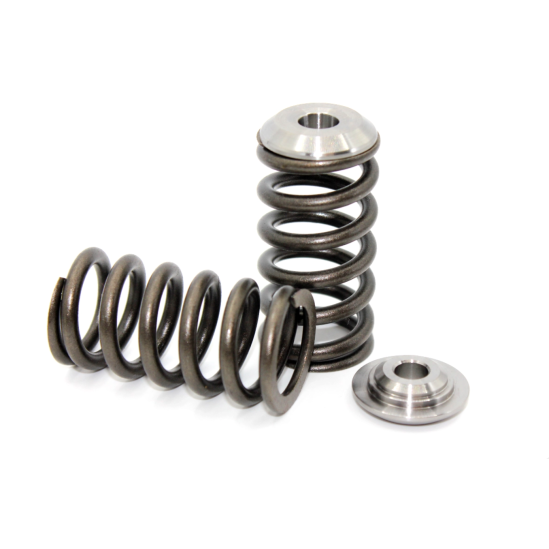

Performance Springs PST 7165890K is a PVS Single Valve Spring and Titanium Retainer Kit designed for the Toyota 4E-FTE 16V engine.
This kit is designed for performance and modified Toyota 4E-FTE applications, providing increased valve train control while replacing the standard valve spring and retainer combination with a matched PVS spring and titanium retainer setup.
The springs install at 31.4 mm installed height with 80 lb of seat pressure and provide approximately 142 lb at 7.5 mm lift. Maximum specified lift is 9.4 mm, with 21 mm coil bind.
Spring Specifications
- Engine Configuration: 16V
- Spring Type: PVS Single Valve Spring
- Installed Height: 31.4 mm
- Seat Pressure: 80 lb
- Pressure @ 7.5 mm: 142 lb
- Maximum Lift: 9.4 mm
- Coil Bind: 21 mm
- Retainer Type: Titanium
- Valve Springs: 16
- Titanium Retainers: 16
Application
- Toyota 4E-FTE 16V
- Toyota 4E-FTE turbo engines
- Modified Toyota 4E-FTE engines
- Performance 4E-FTE valve train applications
What's Included
- 16 × PVS Single Valve Springs
- 16 × Titanium Retainers
Installation Information
Always verify:
- Installed height
- Seat pressure
- Open pressure
- Maximum valve lift
- Coil bind clearance
- Retainer fitment
- Valve stem compatibility
- Valve train geometry
against the specific engine and cylinder-head configuration before installation.
Performance Valve Springs states that the installer is responsible for checking and rechecking all dimensions, pressures, applications and specifications before, during and after installation. The supplier also states that valve spring pressure specifications have an approximate ±8% tolerance.
| Product Name | Performance Springs Toyota 4E-FTE 16V Single Valve Spring & Titanium Retainer Kit – PST 7165890K |
|---|---|
| Brands | Performance Springs |
| Engine | 4EFTE |
| Make | Toyota |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
If you are outside of Australia, you are responsible for any duty or taxes charged by your government."
Disclaimer:
Product images are for description purposes only. Actual product may vary.
