Performance Springs Mitsubishi 4G15 12V Single Valve Spring Kit – PS 4G15
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

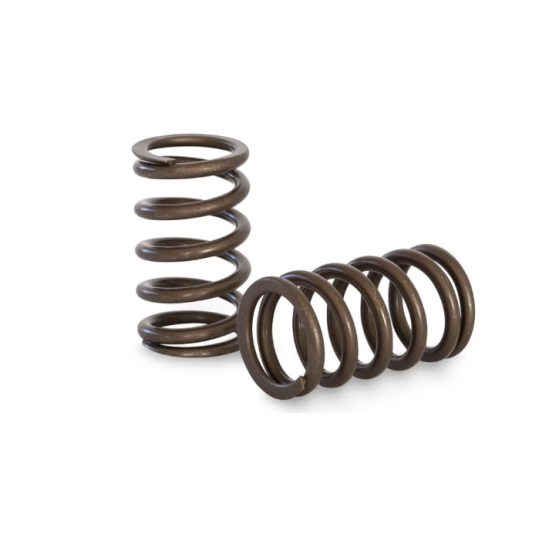

Performance Springs PS 4G15 is a performance single valve spring kit designed specifically for the Mitsubishi 4G15 12V engine.
This kit uses PVS single valve springs for both the intake and exhaust valves, with different spring dimensions for each application.
The springs install at 1.57" installed height, with 70 lb seat pressure and 200 lb pressure at 0.440" (11.1 mm) lift.
The kit includes 8 intake valve springs and 4 exhaust valve springs, providing the complete 12-spring set required for the Mitsubishi 4G15 12V engine.
Product Specifications:
- Part Number: PS 4G15
- Engine Make: Mitsubishi
- Engine Model: 4G15 12V
- Spring Type: Single
- Installed Height: 1.57"
- Seat Pressure: 70 lb
- Pressure @ 0.440" (11.1 mm) Lift: 200 lb
Intake Spring Specifications:
- Intake Outside Diameter: 1.075" (27.3 mm)
- Intake Inside Diameter: 0.750" (19.0 mm)
- Quantity: 8
Exhaust Spring Specifications:
- Exhaust Outside Diameter: 1.225" (31.1 mm)
- Exhaust Inside Diameter: 0.880" (22.3 mm)
- Quantity: 4
Kit Includes:
- 8 × PVS Single Intake Valve Springs
- 4 × PVS Single Exhaust Valve Springs
This is a complete 12-spring kit for the Mitsubishi 4G15 12V application.
Important: Always verify installed height, valve lift, spring dimensions, pressures and application suitability against the specific engine and cylinder head configuration before installation. Performance Valve Springs states that spring pressure specifications have an approximate ±8% tolerance and that the installer is responsible for checking and rechecking all dimensions, pressures, applications and specifications before, during and after installation.
| Product Name | Performance Springs Mitsubishi 4G15 12V Single Valve Spring Kit – PS 4G15 |
|---|---|
| Brands | Performance Springs |
| Engine | 4G15 |
| Make | Mitsubishi |
