Performance Springs Ford Windsor V8 Dual Valve Springs – 1.810" Fitted Height
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

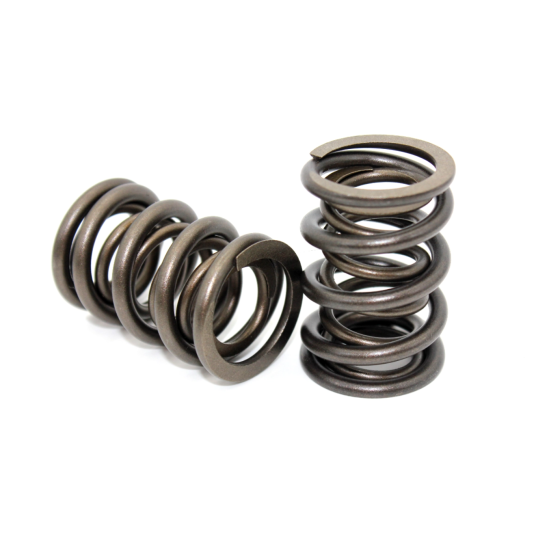

Performance Springs CLBBSB1 Dual Valve Springs are designed specifically for the Ford Windsor V8 with a 1.810" fitted height.
These performance dual valve springs are designed for high-performance Ford Windsor applications requiring increased valve train control and are suitable for applications with up to 0.600" maximum valve lift.
The CLBBSB1 provides 130 lb of spring pressure at 1.800" / 45.7 mm and 345 lb at 31.7 mm, with a 24.6 mm coil bind height.
Product Specifications:
- Maximum Valve Lift: 0.600"
- Outside Diameter: 37.8 mm
- Inside Diameter: 21.2 mm
- Pressure @ 1.800" / 45.7 mm: 130 lb
- Pressure @ 31.7 mm: 345 lb
- Coil Bind: 24.6 mm
What's Included:
- 16 × Performance Springs CLBBSB1 Dual Valve Springs
Performance Valve Springs confirms that a Ford Windsor with 1.810" fitted height requires 16 × CLBBSB1 springs. The supplier's ordering system automatically adds the correct number of springs when ordered for this application.
Important: Always verify valve lift, fitted height, spring dimensions, pressures, coil bind clearance, retainer compatibility and application suitability before installation. Performance Valve Springs states that valve spring pressure specifications have an approximate ±8% tolerance. The installer is responsible for checking and rechecking all dimensions, pressures, applications and specifications before, during and after installation.
| Product Name | Performance Springs Ford Windsor V8 Dual Valve Springs – 1.810" Fitted Height |
|---|---|
| Brands | Performance Springs |
| Engine | Small Block Ford |
| Make | Ford, Mazda |
