Performance Springs Ford Windsor 302-351 CID Single & Damper Valve Springs
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

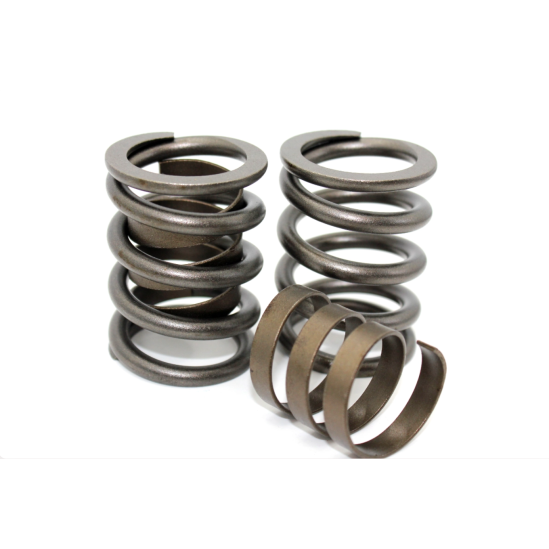

Performance Springs WCH1 Single & Damper Valve Springs are designed specifically for the Ford Windsor 302-351 CID V8 engine.
These performance valve springs are designed to provide reliable valve train control for performance Ford Windsor V8 applications, with a maximum valve lift of 0.540".
The WCH1 features a single spring with damper configuration and is designed to work with standard retainers. A complete Ford Windsor 302-351 CID engine requires 16 valve springs.
Product Specifications:
- Maximum Valve Lift: 0.540"
- Retainers: Standard (STD)
- Outside Diameter: 37.8 mm
- Inside Diameter: 27.2 mm
- Pressure @ 43.2 mm: 110 lb
- Pressure @ 30.5 mm: 300 lb
- Coil Bind: 27.9 mm
What's Included:
- 16 × Performance Springs WCH1 Single & Damper Valve Springs
Performance Valve Springs specifies WCH1 for the Ford Windsor 302-351 CID V8 application, with 16 springs required for a complete engine.
Important: Always verify valve lift, spring dimensions, pressures, coil bind clearance, retainer compatibility, installed height and application suitability before installation. Performance Valve Springs states that valve spring pressure specifications have an approximate ±8% tolerance. The installer is responsible for checking and rechecking all dimensions, pressures and application requirements before, during and after installation.
| Product Name | Performance Springs Ford Windsor 302-351 CID Single & Damper Valve Springs |
|---|---|
| Brands | Performance Springs |
| Engine | Windsor 351 |
| Make | Ford, Mazda |
