Performance Springs Nissan VH45 32V V8 Valve Spring & Ti-Retainer Kit

Performance Springs PST VH45K is a performance single valve spring and titanium retainer kit designed for Nissan VH45 V8 32V turbo applications.

The kit is designed to provide increased valve train control for high-performance VH45 applications, with 100 lb of seat pressure and 190 lb at 10 mm valve lift.

The springs install at 1.450" installed height and are suitable for up to 10.8 mm maximum valve lift, with a 0.950" (24.1 mm) coil bind height.

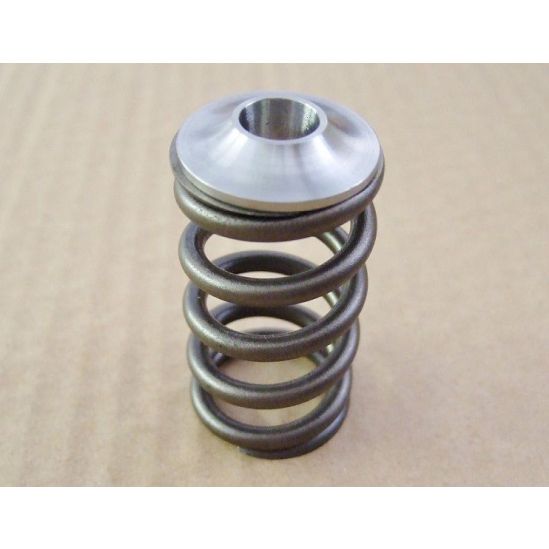

This complete kit includes 32 PVS single valve springs and 32 titanium retainers, providing the components required for the complete 32-valve Nissan VH45 V8 application.

Spring Specifications

• Engine Model: VH45 V8 32V
• Application: Turbo Use
• Spring Type: Single Valve Spring
• Installed Height: 1.450"
• Seat Pressure: 100 lb
• Pressure @ 10 mm Lift: 190 lb
• Maximum Valve Lift: 10.8 mm
• Coil Bind: 0.950" / 24.1 mm

Kit Includes

• 32 × PVS Single Valve Springs
• 32 × Titanium Valve Spring Retainers

Application

• Nissan VH45 V8
• Nissan VH45 32V
• VH45 turbo applications

Important Installation Information:

Always verify installed height, valve lift, spring pressure, coil bind clearance, retainer compatibility and all other dimensions against the specific engine and cylinder head configuration before installation.

Performance Valve Springs states that the installer is responsible for checking and rechecking all dimensions, pressures, applications and specifications before, during and after installation. The supplier also specifies an approximate ±8% tolerance on valve spring pressure specifications.

Titanium Retainer Note: Performance Valve Springs manufactures its titanium retainers in-house. The supplier currently advises of a 2–3 week delay on titanium retainers and notes that the majority of its titanium retainers do not fit the OEM spring, so compatibility should be confirmed before installation/order.
