Kelford Cams 282/286 | 1JZ-GTE Non VVTi
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

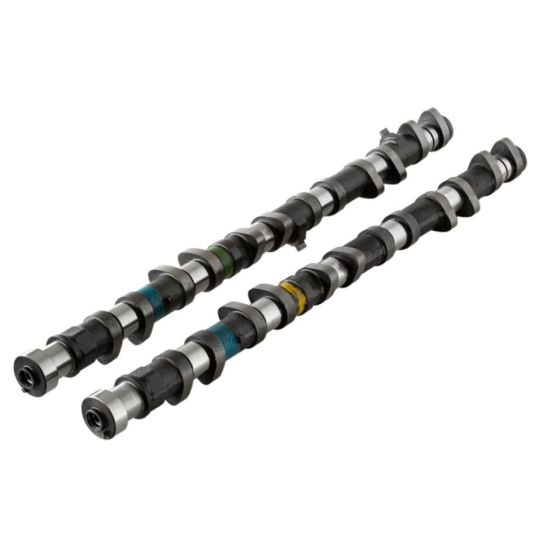

Toyota 1JZ non VVTi Camshafts
282 degree/286 degree | 11.00mm/11.00mm Valve Lift
High lift racing camshaft to suit 1JZ non-VVTi engine running alcohol based fuels and 72mm+ turbo. These high velocity cams require a shimless bucket or shim-under bucket conversion, such as the DLC coated bucket KCF-229.
Cylinder head may require machining for clearance of high lift cam lobes.
| Product Name | Kelford Cams- Suit 1JZ GTE TURBO Supra NON-VVTi, 229-F (282/286) |
|---|---|
| Brands | Kelford |
| Engine | 1JZ |
| Make | Toyota |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
Spring pressure must match the cam profile and rpm limit. Too little causes valve float; too much causes wear.
They allow fine-tuning of cam timing, especially useful after head machining or when running non-standard cams.
The Kelford 229-F camshafts require a shimless bucket or shim-under bucket conversion for proper fitment. Specifically, the DLC coated bucket KCF-229 is recommended. Additionally, the cylinder head may need machining to ensure clearance for the high lift cam lobes.
These camshafts are designed for use with alcohol-based fuels, which can help maximise performance and efficiency when paired with a 72mm or larger turbocharger.
Kelford recommends using the KVS109-1JZ-T valve springs in conjunction with the 229-F camshafts to ensure optimal performance and reliability.
The Kelford 229-F camshafts have a valve lift of 11.00mm for both intake and exhaust, which is suitable for high-performance applications.
No, the Kelford 229-F camshafts are specifically designed for the non-VVTi 1JZ GTE engine. Using them on a VVTi engine would not be appropriate without significant modifications.
