Haltech NEXUS R5 + Plug and Pin Set
Suits: Racing application where advanced race features, data logging and power management control is required.

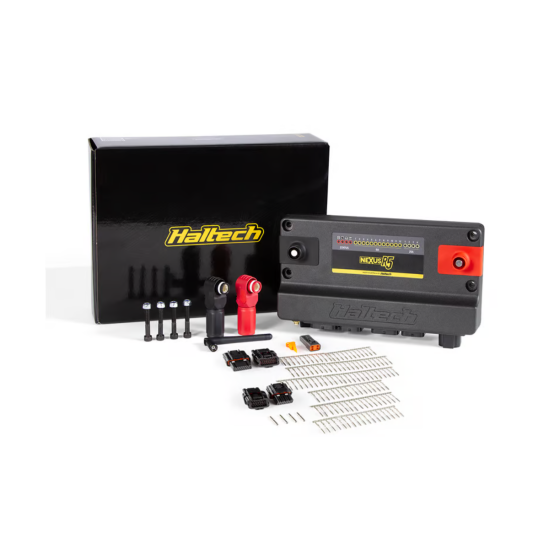

Includes: NEXUS R5 VCU, SurLok connectors (Red and Black), Wi-Fi antenna, mounting bolts, USB-C Cable, USB-C dust cap. Plug and pin set: AMP 26 pin key 1 and 3, 34 pin key 1 and 2, DTP-4.
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
<div class="mt-3 mb-2"><strong>ECU OVERVIEW</strong></div>
<div>The Nexus R5 is Haltech's flagship product, combining the functionality of a power distribution module, data logger, dual-channel wideband controller, and a cutting-edge engine management system. This powerful unit is designed as a Vehicle Control Unit (VCU) to offer complete control for your performance and racing applications.</div>
<ul>
<li><strong>4 x 25A (continuous) push-pull PWM capable outputs (5 kHz)</strong> for power to injectors, coils, transbrake, thermofan, fuel pump</li>
<li><strong>12 x 8A (continuous) high side outputs</strong> (low-speed PWM, 200 Hz) for power to sensors, NOS solenoids, etc.</li>
<li><strong>18 x peak/hold injector drivers</strong> (can be used as low side drive outputs)</li>
<li><strong>12 x low current ignition outputs</strong> (can be used as low side drive outputs)</li>
<li><strong>8 x low side drive outputs</strong> (PWM capable for DPOs)</li>
<li><strong>4 x push-pull / H-bridge outputs</strong> (8A, PWM capable) for applications like electronic throttle control</li>
<li><strong>23 x 0-5V analog inputs</strong> with redundancy for electronic throttle and switchable 5V pullup</li>
<li><strong>Trigger and home inputs</strong> with differential inputs, adjustable thresholds, and glitch filters</li>
<li><strong>10 x synchronous pulsed inputs</strong> (zero crossing or adjustable thresholds) for cam sensors, frequency inputs, or 0-5V analog inputs</li>
<li><strong>2 x onboard wideband controllers</strong>, supporting NTK and LSU4.9</li>
<li><strong>3 x CAN ports</strong> with switchable termination for connecting various devices</li>
<li><strong>Plug and Pin Set</strong> - designed specifically for converting an existing loom to suit Nexus R5 applications</li>
</ul>
| Product Name | Haltech NEXUS R5 + Plug and Pin Set |
|---|---|
| Brands | Haltech |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
Why use a Haltech ECU?
It provides full control of fuel, ignition, boost and safety strategies that a factory ECU cannot manage on a heavily modified engine.
What are the key features of the Haltech NEXUS R5?
The Haltech NEXUS R5 integrates multiple functionalities including a power distribution module, data logger, dual-channel wideband controller, and an advanced engine management system. It features 4 x 25A push-pull PWM outputs, 12 x 8A high side outputs, and 18 peak/hold injector drivers, making it suitable for complex performance and racing applications.
How does the Plug and Pin Set facilitate installation?
The Plug and Pin Set is specifically designed to convert existing wiring looms to be compatible with the NEXUS R5. It includes AMP connectors that simplify the integration process, ensuring a reliable connection for all necessary inputs and outputs.
What types of sensors can be connected to the NEXUS R5?
The NEXUS R5 supports a wide range of sensors through its 23 analog inputs and multiple digital inputs. This includes capabilities for cam sensors, throttle position sensors, and wideband O2 sensors, allowing for comprehensive data logging and engine management.
Can the NEXUS R5 be used in a non-racing application?
While the NEXUS R5 is designed primarily for racing applications, its advanced features and flexibility make it suitable for high-performance street applications as well. However, ensure that the installation and tuning are performed correctly to achieve optimal performance.
What is the importance of the onboard wideband controllers?
The onboard wideband controllers in the NEXUS R5 allow for real-time air-fuel ratio monitoring and adjustment, which is critical for optimising engine performance and efficiency. They support both NTK and LSU4.9 sensors, providing versatility in tuning setups.
-
-
-
-
-
-
