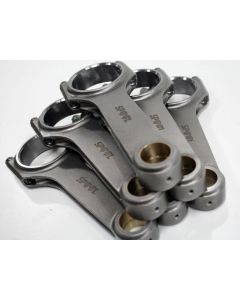

Carrillo Conrods for 6 cyl Nissan VR38 6.496 Pro-H 3/8 Bolt (NI-VR38>-66496H )
Price is for a set of Conrods
This conrod is special order, please allow up to 2 weeks for delivery if not in stock at CP Carrillo we will let you know the ETA.
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
|
Make |
Nissan / Infiniti / Datsun |
|
Model Engine Code |
VR38-GTR |
|
New Part Number |
SCR5450 |
|
Old Part Number |
NI-VR38>-66496H |
|
Centre to Centre (in) |
6.496 |
|
Centre to Centre (mm) |
165 |
|
Style |
PRO-H |
|
Bolt Size |
3/8 |
|
Bolt Type |
WMC |
|
Pin Width (in) |
0.896 |
|
Pin Width (mm) |
22.76 |
|
Big End Width (in) |
0.896 |
|
Bigh End Width (mm) |
22.76 |
|
Big End Bore (in) |
2.3229 |
|
Big End Bore (mm) |
59 |
|
Pin Bore |
23mm |
|
Total/Rotate/Receip (grams) |
600 / 411 / 189 |
|
FN |
H |
|
Cylinders |
6 |
Manufactured from USA made oversized proprietary steel forgings to enable proper grain flow and guarantee removal of any surface inclusions, CP-Carrillo ensures strength and durability of each Carrillo rod. Consistent and reliable from the first point of precision manufacturing all the way to extreme uses in racing world, exclusive Carrillo H beam and Pro (S)A designs offer the highest strength-to-weight ratio; Custom designed fasteners; 100 traceability; multi-step final inspection; CP-Carrillo moly based fastener lubrication included.
| Product Name | Carrillo Conrods for 6 cyl Nissan VR38 6.496 Pro-H 3/8 Bolt (NI-VR38>-66496H ) |
|---|---|
| Brands | Carrillo |
| Engine | VR38DETT |
| Make | Nissan |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
What bolts do these conrods use and how should I tighten them?
These rods use ARP conrod bolts, usually ARP2000 as standard with L19 or CA625+ available on some models. ARP2000 bolts are generally torqued to around 55 ft-lb for 3/8 inch and around 75 ft-lb for 7/16 inch when using ARP Ultra-Torque lube. L19 bolts must be tightened by stretch, not torque. Always refer to the latest ARP instructions for exact specifications.
Do these conrods have a horsepower rating or warranty?
No. Like other performance rods, they do not carry a horsepower or performance warranty. Spool warrants workmanship before installation, but once fitted, power handling depends entirely on machining, clearances, tuning, fuel, boost level and rpm.
Do the big end and small end need machining?
They often do. Crank journals and pin bores vary between engines, so your builder should measure the big end oil clearance and small end pin clearance and hone as required before assembly.
What are the specific machining requirements for the SCR5450 conrods?
The SCR5450 conrods may require honing of the big-end and small-end to achieve the correct clearances due to variations in factory journal and pin sizes. It's essential to measure and confirm these dimensions during installation.
What is the recommended application for the SCR5450 conrods?
The SCR5450 conrods are designed for high-performance applications in the Nissan VR38DETT engine, making them suitable for racing and modified builds where strength and reliability are critical. Ensure proper tuning and fuel quality for optimal performance.
What is the weight of the SCR5450 conrods?
The total weight of each SCR5450 conrod is approximately 600 grams, with a rotating weight of 411 grams and a reciprocating weight of 189 grams. This weight distribution contributes to the overall performance and balance of the engine.
What is the significance of the PRO-H design in the SCR5450 conrods?
The PRO-H design of the SCR5450 conrods offers a high strength-to-weight ratio, making them ideal for extreme performance applications. This design is specifically engineered to handle the stresses of high RPM and increased power levels typical in racing environments.
How long does it take to receive the SCR5450 conrods if they are not in stock?
If the SCR5450 conrods are not in stock at CP Carrillo, please allow up to 2 weeks for delivery. We will provide an estimated time of arrival once the order is placed.
