Carrillo Conrods for 6 cyl Nissan VR38 6.496 Pro-H 3/8 Bolt (NI-VR38>-66496S )

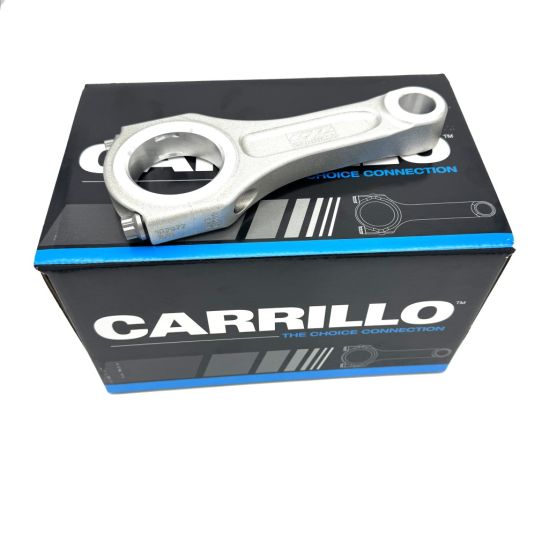

Carrillo Alloy Nissan RB30 Conrods - Special
Please Note: These conrods use a 22mm pin
These conrods are from a cancelled order. We had 4 sets available. Once sold thye will not be available again at this price and will take 16 weeks to get made.
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
Please Note: These conrods use a 22mm pin
- CARRILLO ALLOY RODS
- Features Included:
- Rods Available off the shelf
- Fully Machined Forgings
- Rods come standard with H7AL-1 Bolts
- Floating bolt washers to achieve consistent bolt stretch
- Pocketed to reduce weight
- Total Weight 486 grams
- Rotating Weight 339 grams
- Reciprocating Weight 147 grams
- Centre to Centre 6.000" 152.4mm
- PE Bore 0.8672" 22mm
- BE Bore 2.0866" 53mm
- PE Thks 1.000" 25.4mm
- BE Thks 0.850" 21.59mm
- USA made
These conrods are from a cancelled order. We had 4 sets available. Once sold thye will not be available again at this price and will take 16 weeks to get made.
| Product Name | Carrillo Alloy Nissan RB30 Conrods - Special |
|---|---|
| Brands | CP Carrillo |
| Engine | RB30 |
| Make | Nissan |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
What bolts do these conrods use and how should I tighten them?
These rods use ARP conrod bolts, usually ARP2000 as standard with L19 or CA625+ available on some models. ARP2000 bolts are generally torqued to around 55 ft-lb for 3/8 inch and around 75 ft-lb for 7/16 inch when using ARP Ultra-Torque lube. L19 bolts must be tightened by stretch, not torque. Always refer to the latest ARP instructions for exact specifications.
Do these conrods have a horsepower rating or warranty?
No. Like other performance rods, they do not carry a horsepower or performance warranty. Spool warrants workmanship before installation, but once fitted, power handling depends entirely on machining, clearances, tuning, fuel, boost level and rpm.
Do the big end and small end need machining?
They often do. Crank journals and pin bores vary between engines, so your builder should measure the big end oil clearance and small end pin clearance and hone as required before assembly.
What is the weight of the Carrillo Alloy RB30 conrods?
The Carrillo Alloy RB30 conrods weigh a total of 486 grams, with a rotating weight of 339 grams and a reciprocating weight of 147 grams. This weight distribution is designed to enhance performance and reduce stress on the engine.
What are the specifications for the pin and bore sizes on these conrods?
These conrods use a 22mm pin size for the small end, with a small end bore of 0.8672 inches (22mm) and a big end bore of 2.0866 inches (53mm). Ensure compatibility with your RB30 engine when selecting these conrods.
Do these conrods require any specific machining before installation?
While the Carrillo Alloy RB30 conrods come fully machined, it is advisable to check the big-end and small-end clearances to ensure proper fitment. Depending on your engine's specific setup, additional honing may be necessary.
What is the centre-to-centre measurement of these conrods?
The centre-to-centre measurement of the Carrillo Alloy RB30 conrods is 6.000 inches (152.4mm). This dimension is critical for ensuring correct alignment and fitment within the engine.
Are these conrods suitable for high-performance applications?
Yes, the Carrillo Alloy RB30 conrods are designed for high-performance applications. They feature pocketing to reduce weight and come standard with H7AL-1 bolts, making them suitable for builds that require reliability under increased power levels. However, proper tuning and clearances are essential for optimal performance.
