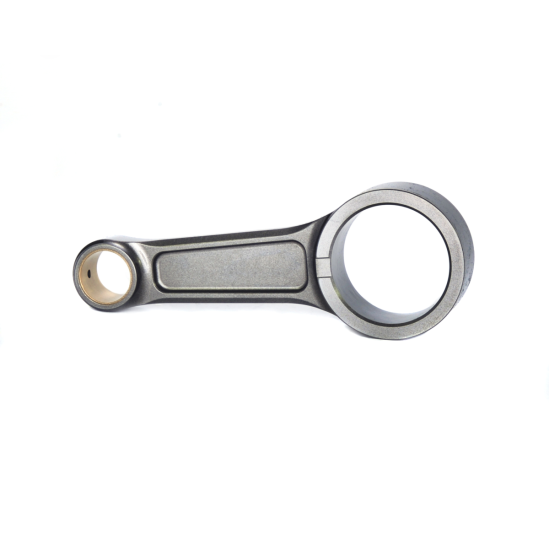

Carrillo PRO-A Conrod for Honda TRX450R 06-09 & CRF450X 05-08 1 Cyl
Please allow up to 2 weeks for delivery. If it is any longer, we will contact you.
Feel free to contact us to confirm delivery time before you order.
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
Carrillo PRO-A Conrod for Honda Honda TRX450R 06-09 & CRF450X 05-08 1 Cyl
|
Categroy |
ATV / UTV |
|
Make |
Honda |
|
Engine |
Honda TRX450R 06-09 & CRF450X 05-08 |
|
Part Number |
PSR8804A |
|
Old Part Number |
HO_OTX06_0AT_4156D0C |
|
Material |
8620 Steel |
|
Cylinders |
1 |
|
Big End Bore (in) |
1.654 |
|
Big End Bore (mm) |
42.012 |
|
Rod Centre to Centre (in) |
4.156 |
|
Rod Centre to Centre (mm) |
105.56 |
|
Weight |
259 / 179 / 80 |
|
Type |
PRO-A |
|
Pin Dia (mm) |
19 |
|
Pin Dia (in) |
|
|
Taper/Straight |
Taper |
|
Bolt Size |
n/a |
|
Bolt Type |
n/a |
|
Pin Width (in) |
0.71 |
|
Pin Width (mm) |
18.03 |
|
Big End Width (in) |
0.859 |
|
Big End Width (mm) |
21.82 |
|
Shelf (RPO) or Made to Order (MTO) |
ROP |
|
Part Description |
Manufactured from USA made oversized proprietary steel forgings to enable proper grain flow and guarantee removal of any surface inclusions, CP-Carrillo ensures strength and durability of each Carrillo rod. Consistent and reliable from the first point of precision manufacturing all the way to extreme uses in racing world, exclusive Carrillo H beam and Pro (S)A designs offer the highest strength-to-weight ratio; 100 traceability; multi-step final inspection; |
Fatigue and over-revving are the two major causes of connecting rod failure. CP Carrillo rods are not only stronger than OEM rods, but they are lighter weight, which means less weight for the engine to throw around at high RPM, and more horsepower output.
| Product Name | Carrillo PRO-A Conrod for Honda TRX450R 06-09 & CRF450X 05-08 1 Cyl |
|---|---|
| Brands | Carrillo |
| Engine | Other |
