Performance Springs Nissan RB20 Valve Spring Set
Performance Valve springs Nissan FJ20 DOHC Valve Spring Set
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

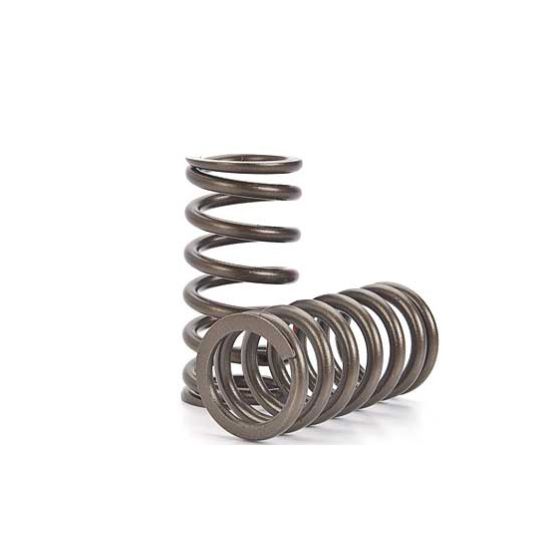

Valve Spring Set for Nissan FJ20 DOHC Engines
This high-load valve spring pack is engineered for the FJ20 DOHC cylinder head, providing stability for engines operating with increased RPM limits or higher valve lift camshafts. The spring profile is designed to support turbocharged applications where elevated cylinder pressures demand improved valve control.
Spring Characteristics
- Seat Pressure: 90 lbs
- Open Pressure: 215 lbs at 11 mm lift
- Maximum Valve Lift: 11 mm
- Configuration: Drop-in replacement
The material and heat-treatment specification ensure fatigue resistance for high-cycle operation, typical of performance-oriented FJ20 builds.
| Product Name | Performance Valve springs Nissan FJ20 DOHC Valve Spring Set |
|---|---|
| Brands | Performance Springs |
| Engine | F20 |
| Make | Nissan |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
What information do I need to match these pistons to my engine?
You need the engine code, bore size, stroke, rod length, pin diameter and target compression ratio. These determine the correct piston compression height and crown design.
How should ring gaps be set for these pistons?
Ring gaps must be set by your engine builder based on fuel type, boost level and the intended rpm range. Forced-induction engines usually require larger gaps.
Are forged pistons suitable for street engines?
Yes. Forged pistons handle detonation and high cylinder pressure better than cast units. Your builder should set the piston-to-bore clearance to suit your application.
What is the maximum valve lift these springs can handle?
The Performance Valve Springs PS-2003D-16 are rated for a maximum valve lift of 11mm. This makes them suitable for high-performance applications, particularly when turbocharging the Nissan FJ20 engine.
What are the installed and open pressures for these valve springs?
These valve springs have a seated tension of 90 lbs and an open pressure of 215 lbs at 11mm valve lift. Ensure these specifications are met during installation for optimal performance.
Are these valve springs a direct fit for the FJ20 engine?
Yes, the PS-2003D-16 valve springs are designed as a simple drop-in fit for the Nissan FJ20 DOHC engine, making installation straightforward for engine builders.
Can I use these springs with stock camshafts?
While these springs can be used with stock camshafts, they are specifically designed for high-performance applications. If using aggressive cam profiles, ensure compatibility with the spring specifications.
What should I check before installing these valve springs?
Before installation, verify that the spring seats and retainers are in good condition. Additionally, check for proper clearance and ensure the springs are installed with the correct tension to avoid valve float at high RPM.
