Performance Springs Holden/Isuzu Gemini G161 G180 G200 & Ford 2.0L Dual Valve Springs – PS 1006D
Performance Springs Isuzu/Holden Gemini G161 G180 G200 & Ford 2.0L Single Valve Springs – PS 1006
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

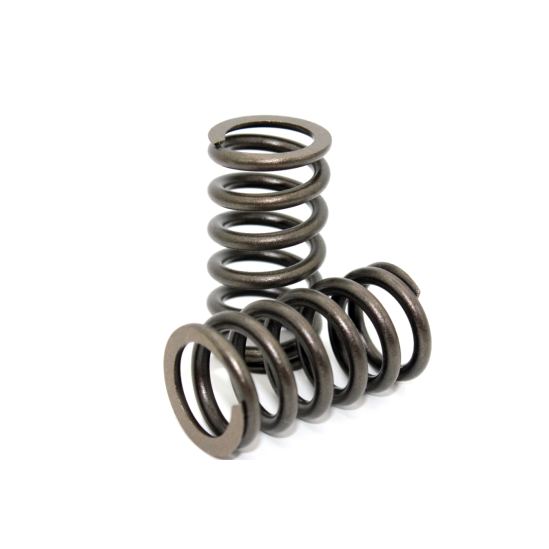

Performance Springs PS 1006 Single Valve Springs are performance valve springs suitable for Isuzu/Holden Gemini G161, G180 and G200 engines, as well as Ford 2.0L engine applications.
Designed for performance engine builds, the PS 1006 single valve springs provide reliable valve train control and are suitable for applications requiring up to 0.420" maximum valve lift.
The PS 1006 features a 33.6 mm outside diameter, 25.1 mm inside diameter and 22.2 mm coil bind. The spring is specified at 75 lb at 1.550" (38.1 mm) and 180 lb at 27.9 mm.
Product Specifications:
- Applications: Isuzu/Holden Gemini G161, G180 & G200; Ford 2.0L
- Spring Type: Single
- Maximum Valve Lift: 0.420"
- Installed Height: 1.550" (38.1 mm)
- Outside Diameter: 33.6 mm
- Inside Diameter: 25.1 mm
- Pressure @ 1.550" / 38.1 mm: 75 lb
- Pressure @ 27.9 mm: 180 lb
- Coil Bind: 22.2 mm
What's Included:
- 8 × Performance Springs PS 1006 Single Valve Springs
Important: Always verify valve lift, installed height, spring dimensions, pressures, coil bind clearance, retainer compatibility and application suitability before installation. Performance Valve Springs states that valve spring pressure specifications have an approximate ±8% tolerance. The installer is responsible for checking and rechecking all dimensions, pressures, applications and specifications before, during and after installation.
| Product Name | Performance Springs Isuzu/Holden Gemini G161 G180 G200 & Ford 2.0L Single Valve Springs – PS 1006 |
|---|---|
| Brands | Performance Springs |
| Engine | G161, G180, G200 |
| Make | Ford, GM, Isuzu |
