Performance Springs Ford Big Block Dual Valve Springs - CLBBSB2
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

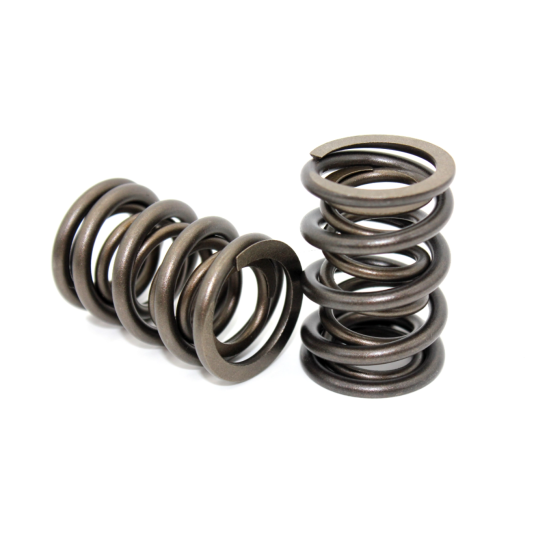

Performance Springs CLBBSB2 Dual Valve Springs are designed specifically for Ford Big Block V8 applications.
These performance dual valve springs are designed to provide increased valve train control for high-performance Ford Big Block engine builds, with a maximum specified valve lift of 0.650".
The CLBBSB2 features a 38.6 mm outside diameter and 21.3 mm inside diameter. The springs provide 130 lb of pressure at 1.950" / 49.5 mm and 370 lb at 34.3 mm, with a 29.2 mm coil bind height.
A complete Ford Big Block engine requires 16 valve springs.
Product Specifications:
- Maximum Valve Lift: 0.650"
- Outside Diameter: 38.6 mm
- Inside Diameter: 21.3 mm
- Pressure @ 1.950" / 49.5 mm: 130 lb
- Pressure @ 34.3 mm: 370 lb
- Coil Bind: 29.2 mm
What's Included:
- 16 × Performance Springs CLBBSB2 Dual Valve Springs
Performance Valve Springs specifies that a Ford Big Block requires 16 × CLBBSB2 springs. The supplier automatically adds the correct quantity when the product is ordered.
Important: Always verify valve lift, installed height, spring dimensions, pressures, coil bind clearance, retainer compatibility and application suitability before installation. Performance Valve Springs states that valve spring pressure specifications have an approximate ±8% tolerance. The installer is responsible for checking and rechecking all dimensions, pressures, applications and specifications before, during and after installation.
| Product Name | Performance Springs Ford Big Block Dual Valve Springs - CLBBSB2 |
|---|---|
| Brands | Performance Springs |
| Engine | Big Block Ford |
| Make | Ford, Mazda |
