Nissan RB25DETT Rebuild Kit with Carrillo Conrods and CP Forged Pistons
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

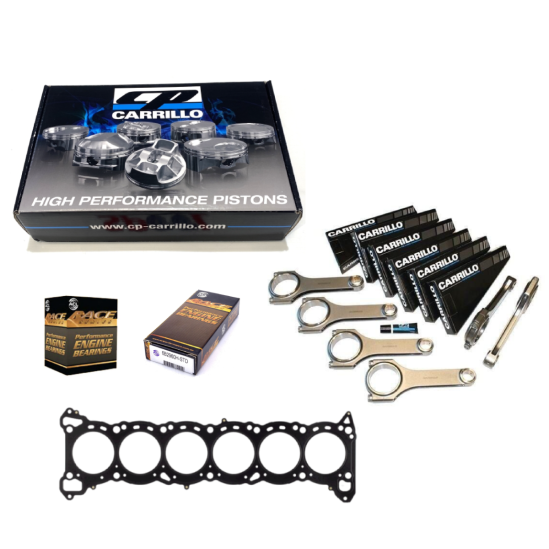

This Rebuild Kit includes the following quality parts:
- CP Carrillo Conrods, Pro H-Beam, Pro H-Beams with CAR Bolts, Pro A-Beam or Super A-Beam
- CP Forged Pistons (Rings, Pins and Locks Included)
- Cometic MLS Head Gasket
- ACL Race Series Main Bearings - STD or 0.25mm
- ACL Race Series Big End Bearings - STD or 0.25mm
Pistons are available in:
- Compression Ratios: 8.5:1 and 9.0:1
- Bore Sizes: STD, 86.5mm and 87mm
- Pistons come with rings, gudgeon pins and pin locks
Upgraded Pin options: 9310 - 0.250"(6.25mm), 0.200"(5mm) and 0.180"(4.125mm)
Spool Connecting Rods Feature:
-
CP-Carrillo uses a proprietary steel to manufacture its connecting rods, named Carrilloy. It is a chrome, nickel, moly, vanadium alloy which meets all VAR (vacuum arc re-melt ASTM standards). Carrilloy is simply a modification of an existing SAE specification. We just tighten up the acceptable attributes of the heat as it is manufactured. The heat is validated, both by the supplier and an independent metallurgist whom confirm the desired physical and chemical properties of steel.
CP Pistons standard features include:
- 5310 gudgeon pins (9310 thicker wall thickness pins are available as an upgrade)
- Deep valve reliefs accommodate high lift camshafts
- Larger valve reliefs for +1mm valve sizes
- Custom skirt cam and barrel design
- Accumulator grooves
- High strength aluminium forgings
- High performance rings
- Fully CNC machined and balanced to +/- 1 gram
- Wrist pins included
- Double pin oilers force fed from oil ring groove
- Pick lock grooves for easy lock removal
- Pin fitting included
Note: We recommend Joe Gibbs Break in Oil for all new engines.
| Product Name | Nissan RB25DETT Rebuild Kit with Carrillo Conrods and CP Forged Pistons |
|---|---|
| Brands | CP Carrillo |
| Engine | RB25 |
| Make | Nissan |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
What is included in a typical Spool engine kit?
Kits usually include pistons, rings, rods, bearings and related hardware depending on the engine family. Check the listing for exact inclusions.
Do I still need machining with a full engine kit?
Yes. The block must be honed and all clearances checked and set by your builder. Assembly should only occur after full measurement and verification.
What compression ratios are available for the CP forged pistons in the RB25DETT rebuild kit?
The CP forged pistons in the RB25DETT rebuild kit are available in two compression ratios: 8.5:1 and 9.0:1. Choose the ratio based on your intended power goals and fuel type.
What are the recommended bore sizes for the pistons in this kit?
The pistons in the RB25DETT rebuild kit are available in standard bore size, 86.5mm, and 87mm. Ensure you select the correct size based on your engine's specifications and any previous machining.
What type of connecting rods are included in the RB25DETT rebuild kit?
The kit includes CP Carrillo Pro H-Beam connecting rods, which are made from Carrilloy, a proprietary steel alloy designed for high strength and reliability in performance applications.
Do I need to consider specific clearances when using the CP pistons and Carrillo conrods?
Yes, proper bore clearance and ring gaps must be set by the engine builder to ensure optimal performance and reliability. Always refer to the manufacturer's specifications and guidelines.
What type of oil is recommended for breaking in a new engine built with this kit?
It is recommended to use Joe Gibbs Break in Oil for all new engines built with the RB25DETT rebuild kit to ensure proper lubrication during the critical break-in period.
