Balancing Compression Ratio and Boost for Maximum Power
Balancing Compression Ratio and Boost for Maximum Power

Balancing Compression Ratio and Boost for Maximum Power

If you're chasing power, you've probably heard the debate about compression ratio (CR) and boost pressure. Get it right, and you’ve got a weapon on your hands. Get it wrong, and you’re looking at knock, broken parts, and an expensive rebuild. Let’s break it down so you can make the right choices for your build.

Compression Ratio 101

In simple terms, the compression ratio is how much the air/fuel mixture is squeezed inside the combustion chamber before ignition. A higher CR means more efficiency and power at lower boost levels, while a lower CR gives more room to cram in boost without knocking.

High Compression vs. Low Compression – What’s Better?

There’s no one-size-fits-all answer. Here’s how each setup behaves:

High Compression (10:1 and beyond)

  • More power off boost (better throttle response).
  • More efficient combustion (less fuel needed).
  • Higher risk of detonation at high boost.
  • Requires high-octane fuel (E85 is your best mate here).

Low Compression (8.5:1 - 9:1)

  • Safer for high boost applications.
  • Can run on lower-octane fuel without as much risk of knock.
  • Less power off boost (slower throttle response).
  • Requires more boost to achieve the same power as a high CR setup.

Boost & Tuning – Finding the Sweet Spot

A lower compression ratio lets you safely run more boost, but don’t just throw in a bigger turbo and call it a day. You need proper tuning to get the best out of your setup.

This is where Haltech comes in. A standalone ECU like the Haltech Elite lets you dial in the perfect fuel and timing maps to match your CR and boost levels, keeping your engine safe while making maximum power.

Choosing the Right Pistons for Your Build

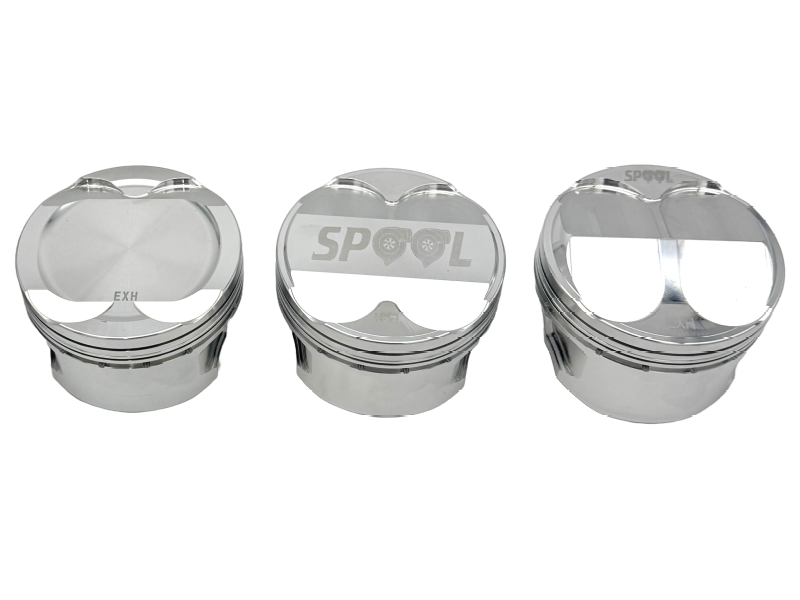

At Spool Imports, we stock CP Pistons and Ross Racing Pistons—both well-known for handling serious power.

CP Pistons (Off-the-Shelf Options) are normally

  • 8.5:1 CR – Often around the OEM compression ratio of Turbo setups.
  • 9:1 CR – Standard performance upgrade, great for high-boost setups.
  • 10:1 CR – A solid middle-ground for those who want a bit more response without sacrificing much boost potential. A high octane fuel like E85 is essential.

Custom CP Pistons

  • Need something specific? We can get custom pistons made by CP if there’s nothing suitable off the shelf.
  • Custom orders take 5-8 weeks, so plan ahead.

Semi-Custom Barra Bullet Pistons

  • We also have Semi Custom Barra Bullet pistons on the shelf in 10:1 and 12:1, giving you more flexibility for your Ford XR6 Turbo build.

Final Thoughts

Balancing compression ratio and boost is all about knowing your fuel, your tuning, and your goals. If you're planning a build and need advice on which pistons to run, get in touch with the team at Spool Imports—we’ll help you find the perfect setup to suit your needs.

Got a high-power Barra, RB, or JZ build in the works? Let’s chat!
