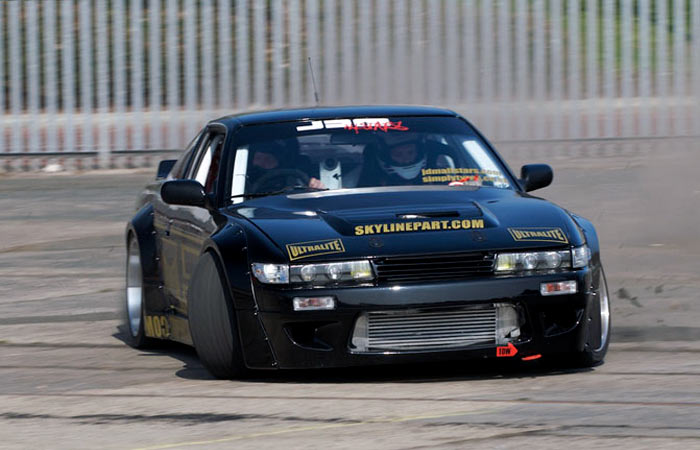

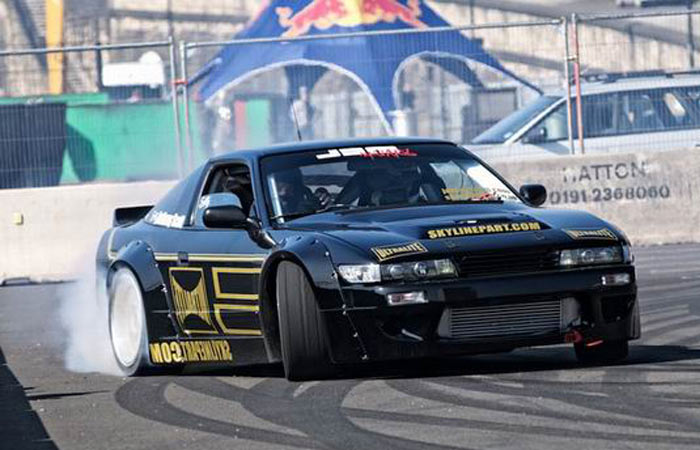

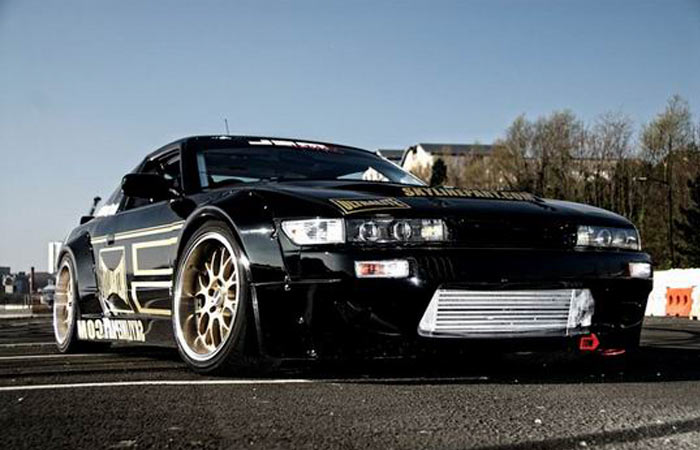

RB30DET Bunny S13
RB30DET Bunny S13
Anthony Scott's ROCKET BUNNY 6666

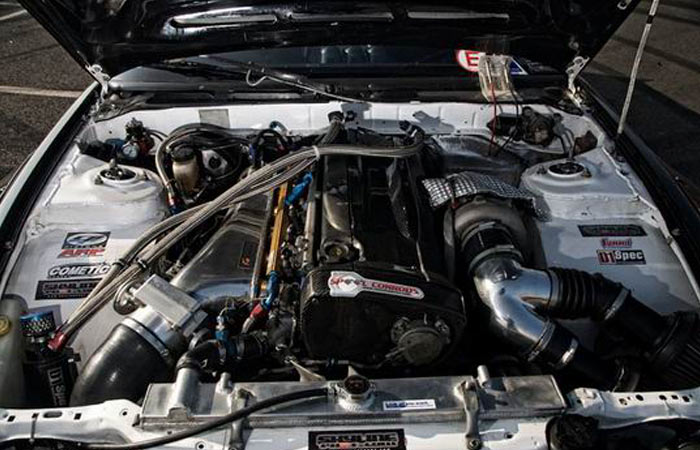

Nissan S13 RB30DET, 535 BHP 540 FT LB torque @ 1.6 bar.
Built in house at Japan Import Car LTD.
http://www.prodriftseries.com/2009/07/02/rocket-bunny-car-feature/
http://www.jdmallstars.com/blog/
http://www.youtube.com/watch?v=J7K_pLdJQiE
http://www.youtube.com/watch?v=kscb9f7i9Ug
Specs:
- Nissan RB30 block, modified oil feeds and returns
- GTR ported and polished cylinder head
- HKS 260 camshafts
- GTR adjustable cam pulleys
- Spool H beam con rods
- CP forged oversize pistons
- ACL race bearings, mains and big ends
- ARP studs, head, mains and big ends
- Spool large capacity oil sump
- Spool cylinder head oil drain kit
- Cometic metal 1.2mm cylinder head gasket
- N1 oil pump
- N1 water pump
- Garret GT35 Turbo (ACT turbo's)
- 40mm external waste gate
- Custom 3" exhaust system
- Apexi power FC ecu
- HKS 720cc injectors
- Ku Engineering inlet manifold with 100mm throttle body
- Sard fuel rail
- Aeromotive 1000 bhp fuel pumps
- Aeromotive fuel pressure regulator
- Aeromotive fuel filters
- Aeromotive drag race fuel cell
- Braided fuel lines.
- Alloy fabrications swirl pot
- 2xs Z32 air flow meters
- Blitz cone air filters
- Japspeed GTR alloy over size front mount intercooler
- Japspeed S13 alloy over size water radiator
- External engine oil cooler with filter relocation
- External power steering oil cooler
- EP racing oil catch tank (modified)
- Driftworks Control system 2 coilover suspension
- Driftworks Adjustable lower arms front and rear
- Japspeed upper rear adjustable arms and sub frame brace
- Driftworks alloy sub frame and differential mounts
- Brembo GTR front and rear brakes
- Skylinepart front grooved brake discs
- GTS steering rack with electrical 2 stage assistance
- Whiteline adjustable anti roll bars
- RB25 Gearbox with PPG straight cut gears and dog selectors
- Custom poly gear box mount
- Nismo twin plate clutch
- Cusco 2 way GTR differential in S13 case
- GTR drive shafts
- GTR Rear hubs
- S14 front hubs
- Custom one piece prop shaft
- Rocket bunny Tra-kyoto 6666 customs body kit
- Plastics4performance rear 3 windows
- FRP doors
- PS13 front
- EP racing FRP bonnet
- Ultralite alloys 18x9 ET10 (20mm rear spacers, extra 5mm added depending upon tyre size)
- Crystal front indicators and side lights
- Tinted rear lights
- Border racing seats
- Driftworks 4 point 3" harnesses
- Hydraulic handbrake
- Custom wiring harness and fuse/relay board and switch control board
- Flocked dash and door cards
- OMP suede steering wheel (snap off removable)
- Impul Alloy gear knob
- Auto meter oil pressure gauge
- Auto meter oil temperature gauge
- Auto meter water temperature gauge
- Apexi boost gauge
- GTR dash unit, speedometer, rev counter
- Custom fuel system housing
- Tubbed front wheel wells
- Fully seam welded shell
- Fully welded in custom roll cage
- Safety electrical cut off switch
- Plumbed in fire extinguisher system
- Driftworks tow hooks
