Piston Ring Gaps Explained: Use Our Free Ring Gap Calculator
When you’re building a high-performance engine, every detail counts. One of the most important (but often overlooked) steps is correctly setting your piston ring gap. Get this wrong and you could end up with excessive blow-by, poor performance, or even catastrophic engine failure. Get it right, and your build will run smoother, last longer, and make more power.

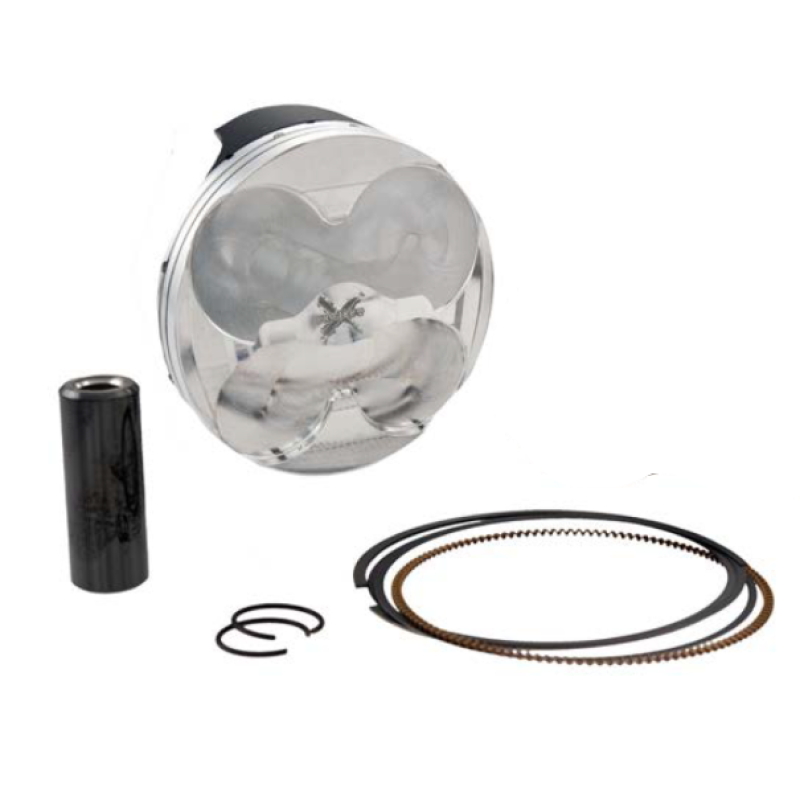

All the pistons we sell at Spool Imports come with file fit rings that means you will need to file the rings to get the correct gap.
What is Piston Ring Gap?
The piston ring gap is the small clearance between the ends of your piston rings when they’re installed inside the cylinder bore. As the engine heats up, the rings expand — if the gap is too small, the ends can butt together, causing major damage. If the gap is too large, you’ll lose compression and power.
How to Measure Ring Gap
- Install the piston ring squarely into the bore using a piston or ring squaring tool.
- Measure the end gap with a feeler gauge.
- Compare the measurement to the recommended specs for your engine and application.
For example, CP-Carrillo recommends the following minimum ring end gaps based on bore size:
| Application | Top Ring | Second Ring |
|---|---|---|
| Street Performance | Bore × .0045" | Bore × .0050" |
| High Performance / Racing | Bore × .0050" | Bore × .0055" |
| Forced Induction / Nitrous | Bore × .0055"–.0060" | Bore × .0055"–.0060" |
Introducing the Spool Imports Ring Gap Calculator
We know the maths can be a pain when you’re in the middle of a build. That’s why we’ve created a free Ring Gap Calculator that takes the guesswork out of the process. Simply enter your bore size and application, and the calculator will give you the recommended ring gap instantly.
Why Ring Gap Matters
- Too Tight: Rings will butt together as they expand with heat, leading to scuffing, scoring, or even cracked pistons.
- Too Loose: Excessive blow-by, loss of compression, reduced horsepower, and poor oil control.
- Correct Gap: A reliable, powerful, and long-lasting engine build.
FAQs About Piston Ring Gaps
What happens if my piston ring gap is too small?
If the ring gap is too small, the ring ends can touch when heated, causing cylinder wall damage, scuffed pistons, and even complete engine failure.
Can I use the same ring gap for all applications?
No. Street engines, high-performance builds, and boosted/nitrous engines all require different gaps. That’s why using a calculator with recommended specs is so important.
Do I need to file-fit my rings?
Yes, all the pistons sold by Spool Imports come with rings that are file-to-fit. This ensures you achieve the precise gap needed for your bore size and engine application.
How accurate is the Spool Imports Ring Gap Calculator?
Our calculator is based on industry-standard recommendations from CP-Carrillo and other performance engine builders. It’s designed to give you a reliable starting point — always measure and verify your final gaps during assembly.
Final Thoughts
Getting your piston ring gaps right can mean the difference between a winning engine build and a costly disaster. Use our free calculator, follow the recommendations, and give your engine the best chance at making reliable power.
